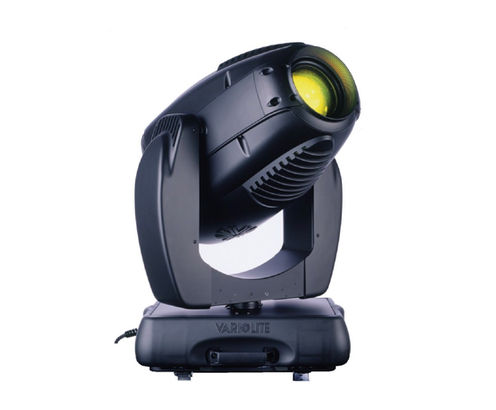

Vari*lite VL3000 Spot
Proudly built in the USA, the VARI*LITE VL3000 Spot luminaire sets new standards for imagery, beam control, color and brightness in spot luminaires.

The VARI*LITE VL3000 Spot luminaire features a 6:1 zoom optics, CYM color mixing, variable CTO color temperature correction, a six-position color wheel, three gobo/effects wheels, a beam size iris and separate dimmer and ultra-fast strobe mechanisms. A standard pallet of gobos, effects and colors is provided with the unit. Custom gobos, effects and color are available.

An upper enclosure houses the control electronics as well as the arc power supply for the 1200 watt short arc lamp. The arc power supply is power factor corrected for efficient power distribution.

The VL3000 Spot luminaire can be controlled from a wide variety of DMX512 consoles.

The luminaire is the same size as the VL3000 Wash luminaire, providing a consistent hang configuration and appearance no matter which luminaire type is required.







Vari*lite VL3000 Spot

  • Click Here for a PDF User Manual

    Click Here for a PDF DMX Chart

    Click Here for a PDF Photometrics Data Sheet
